R19 TSTUD™

The R19 Tstud™ is a cleverly designed building material that combines two pieces of lumber, an internal truss system, and foam insulation. This single product addresses five major construction concerns for 2x6 framing: it improves thermal breaks, enhances structural strength, reduces sound transmission, and meets hurricane and seismic compliance standards—all in one go.

98% Complete Thermal Break Through The Stud

Patent # 9783985

  • 2x6 - 5.5” R19 Tstud™

    Lengths Available: 92 5/8”, 8', 104 5/8”, 9', 116 5/8”, 10’, 12’ along with special order 14' and 16'.

  • 5.5” R19 Tstud:

    Certified to crush #2 SPF bottom plate at 3600#

    Certified to crush LSL or LVL bottom plate at 5600#

KEY BENEFITS

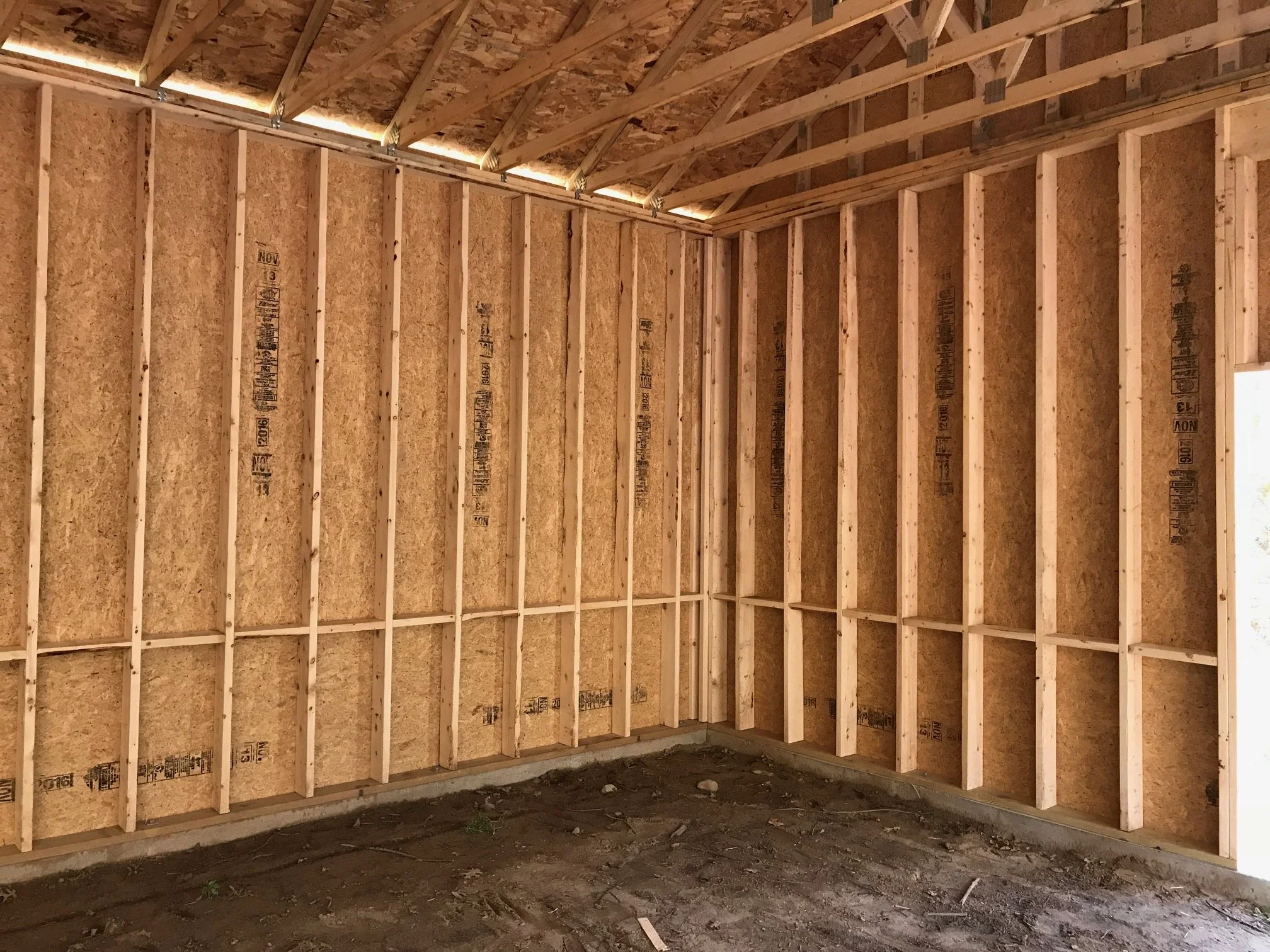

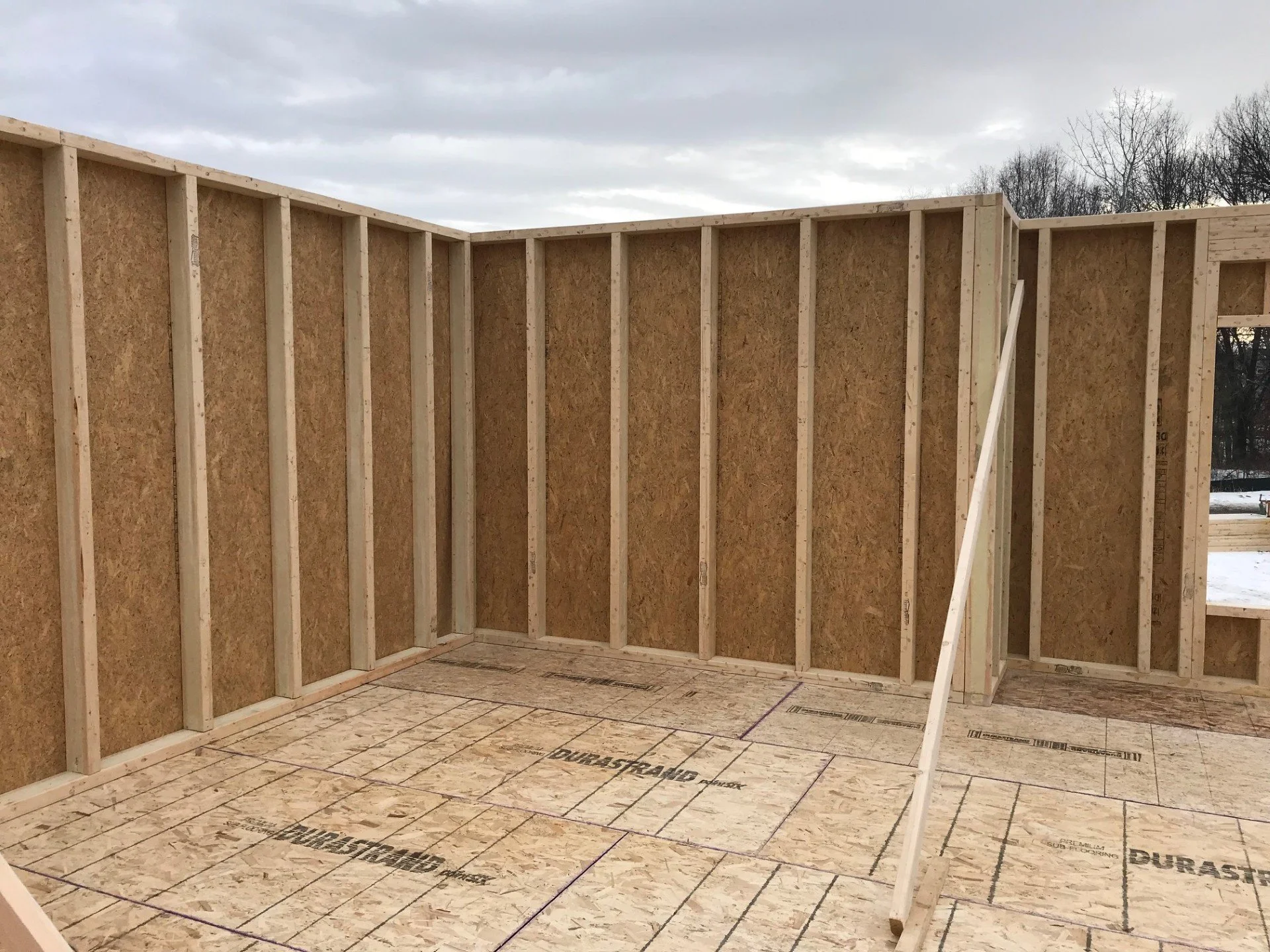

  1. Because of the strength value proposition of the R19 Tstud™, many homes and structures have been built at 24” on center saving up to 24% of the studs and the 2,000 fasteners attached to them.

  2. The R19 Tstud™ wall assembly provides a complete* thermal break through the wall - hot or cold. *98% complete thermal break

  3. All wind load tables are in the ICC Report, but most can be used up to 24” on center in wind loads 1-5 and the taller walls typically up to 16” on center.

  4. The R19 Tstud™ will ultimately offer a sound transmission rating as well but is untested at this time.

  5. The adhesive used in making the R19 Tstud™ pass all applicable heat, fire, and moisture testing for the products to be used in the stated structural scenarios within the TER’s.

  6. Hurricane + Seismic Compliant
